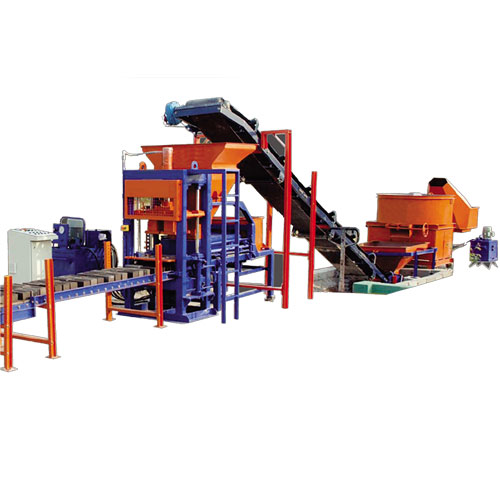

STATIONARY BLOCK / PAVER MAKING MACHINE-15000 Blocks

STATIONARY BLOCK / PAVER MAKING MACHINE – 15000 Blocks

The Stationary Block Making Machine works on batch processing, automated concrete mixing and pressing systems. The transfer of hollow blocks, solid blocks or paver blocks is carried out by conveyor belts. The capacity of the concrete block making machine, depends on block type and can range between 4,000 to 15,000 blocks per day. SONAS Indian Machines is the leading block making machine manufacturer and exporter in Zambia. SONAS also manufactures and exports various construction machinery, agricultural equipment, food processing machines and general machines to Congo, Angola, Zimbabwe, Namibia, Malawi, Tanzania, Botswana, Uganda, Ethiopia, Kenya, many other countries in Africa and South East Asia.

Capacity 4000 – 15,000 Block / Shift*
Power 7.5 HP + 1.5 HP + 1 HP Three Phase (440 Volt) Motors
Type Heavy Duty Stationary Block / Paver Making Machine
Requirements 4 Man Power
Pallets
Trolleys
Weight 1500 kg approx
Moulds 4” Block – 11 Nos / Stroke
6” Block – 7 Nos / Stroke
8” Block – 5 Nos / Stroke
Paver – 8 Nos / Stroke
Features Non-corrosive, High Grade Iron Metal
High Precision Laser Cut Ram and Mould
Heavy Duty Hydraulic Pumps, Hydraulic Motors, Vibrators, Gear Box
High Grade Hydraulic Cylinders
International Standard Safety Electric Control Panel
Highly Rugged Specially Designed for Africa
* At Standard Conditions

Customers are free to call for any customizable feature on any product dealt by SONAS.
