DINOSAUR-4000 Blocks

DINOSAUR – 4000 Blocks

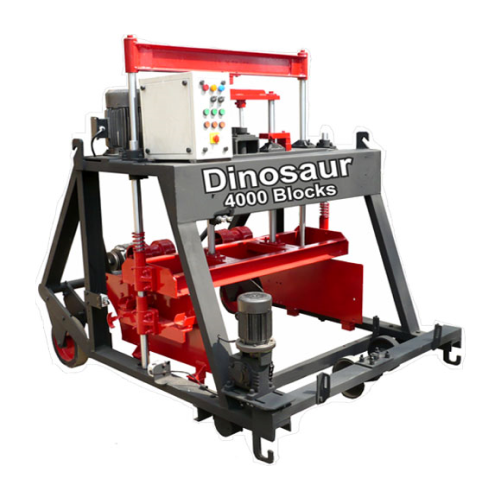

The DINOSAUR Block Making Machine is a wheeled machine and produces soild blocks, hollow blocks or paver blocks. It is an egg laying type where the blocks are laid on a concrete floor and then move on to the next position where the new batch of concrete blocks will be placed. The mold and ram are precision made to create stronger and uniform blocks and allowing the manufacturer to use less man power. Any kind of blocks can be made and the capacity of the concrete block making machine, depends on block type and can range between 4,000 blocks per day. SONAS Indian Machines is backed by rich experience and manufacturing and exporting wide range of block making machine in Zambia. SONAS also manufactures and exports various construction machinery, agricultural equipment, food processing machines and general machines to Congo, Angola, Zimbabwe, Namibia, Malawi, Tanzania, Botswana, Uganda, Ethiopia, Kenya, many other countries in Africa and South East Asia.

Capacity 4000 Block / Shift*
Power 3HP + 3HP + 0.75HP Three Phase (440 Volt) Motors
Type Egg Laying Type, Self-Moving Machine
Requirements 3 Man Power
20m x 20m Concrete Platform
Weight 1200 kg approx.

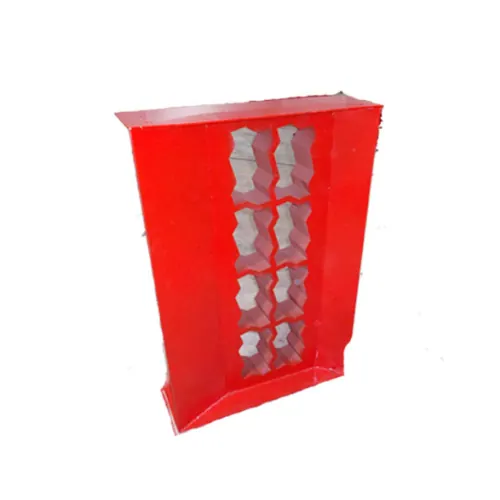

Moulds 4” Block – 10 Nos / Stroke
6” Block – 6 Nos / Stroke
8” Block – 4 Nos / Stroke
Paver – 6 Nos / Stroke
Features Non-corrosive, High Grade Iron Metal

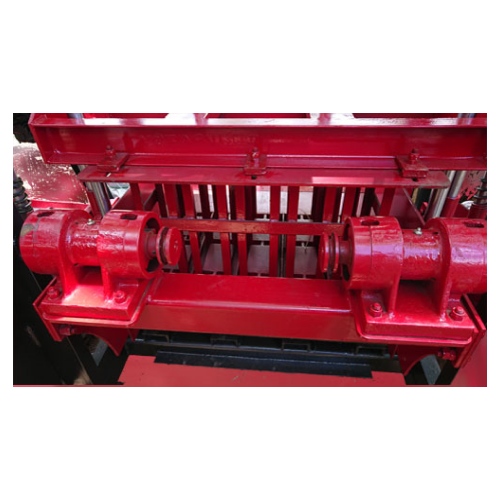

High Precision Laser Cut Ram and Mould
Heavy Duty Hydraulic Pumps, Hydraulic Motors, Vibrators, Gear Box
High Grade Hydraulic Cylinders
International Standard Safety Electric Control Panel
Highly Rugged Specially Designed for Africa
* At Standard Conditions

Customers are free to call for any customizable feature on any product dealt by SONAS.
