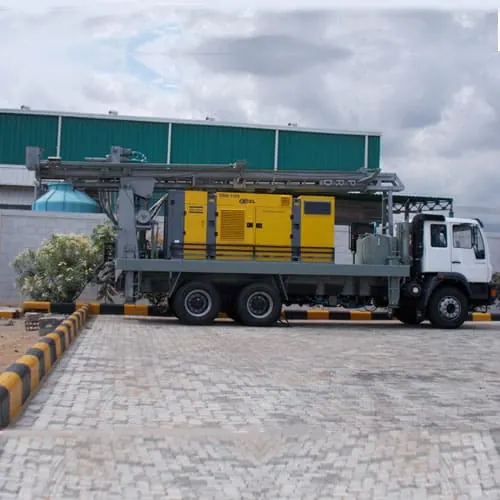

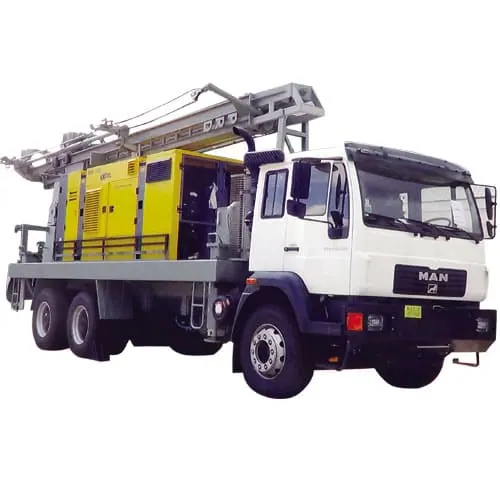

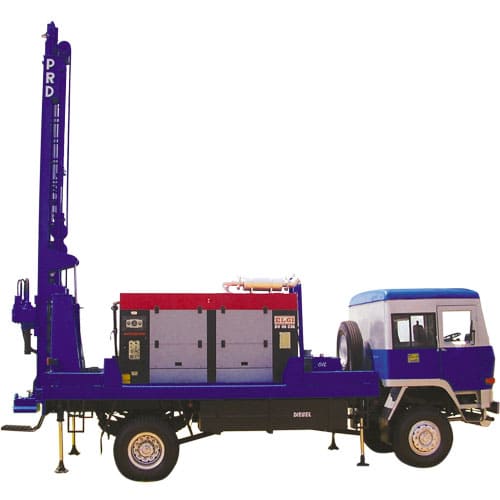

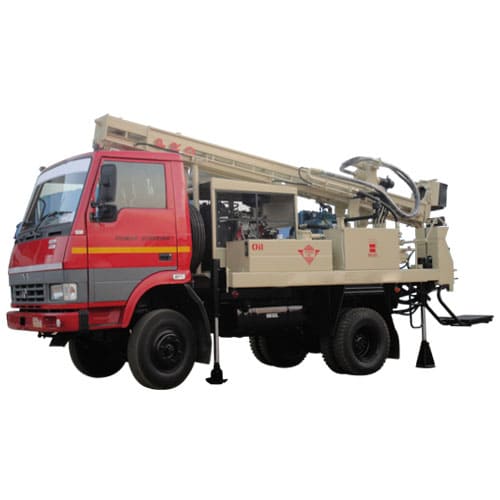

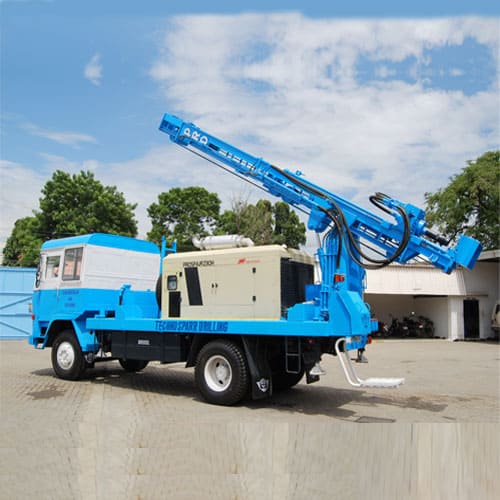

DRILLING RIGS
HEAVY DUTY DRILLING RIGS
The Drilling Rigs is a construction and mining equipment that is used to drill water or oil wells and used in mineral mines. SONAS Indian Machines Manufactures and Exports a wide range of Heavy Duty equipment such as, Excavators, Backhoe Loader, Bobcat Skid Steer, Stone Crusher, Tandem Rollers, Motor Graders, Drilling Rigs, Liftall Cranes and many more in various capacities according to the customers requirements. SONAS also Exports a wide range of construction machinery, agricultural equipment, food processing machines and general machines to Congo, Angola, Zimbabwe, Namibia, Malawi, Tanzania, Botswana, Uganda, Ethiopia, Kenya, many other countries in Africa and South East Asia.
| Hole Diameter | 165 – 254 mm ( 6 ½ “ – 10” ) |
| Maximum Depth | 250 m |
| Drilling Method | DTH and Rotary Drilling |
| Max Water / Injection Pump Flow | 50 lpm |
| Air Compressor | ELGI 14 – 21 bar Air Compressor |
| Feed System | Double Acting Hydraulic Cylinder With 1:3 Rope Reeving System |
| Oil System Capacity | 21.5 Lit |
| Hydraulic Tank Capacity | 450 Lit |
| Features | Centralized Control Panel for Convenient Viewing of Drill Table. 4 x Lug mounted Hydraulic Leveling Jacks for Quick Setting Hydraulic Operated Water Injection Triplex Pump with Necessary Fittings Additional Fitments like Night Lights, Tools Box, Hammer Stand, Fuel Tank for Compressor |
Customers are free to call for any customizable feature on any product dealt by SONAS.
